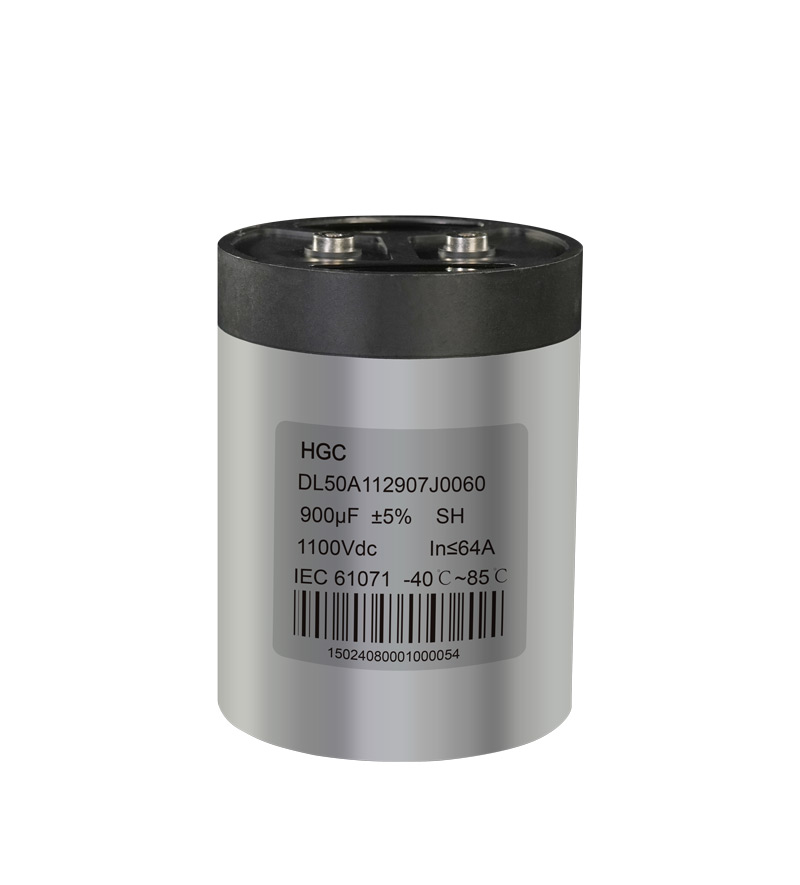

PEC DC-Link

1. High ripple current capability
2. Low ESR and ESL
3. Self-healing properties
4. High capacitance density
5. Long life expectation

Application

For general use in power electronics, especially for DC Link applications of: UPS power supply, inverters of PV and Wind Power systems

Product parameters

  Technical Specifications
·   StandardsCnIEC /EN 61071, GB /T 17702
·   Rated CapacitanceCnRefer general Data sheet
·   Standard capacitance tolerance%K ±10% (other tolerance upon request)
·   Frequency rangeHz50Hz ~ 10 kHz
·   Rated DC Voltage UN(DC)VDCRefer general Data sheet
·   Voltage between terminalsVTT1.5 x U N(DC), 10 s
·   Voltage between terminals and caseVTC4000 VAC,10s
·   Dielectric dissipation factortanδ02.0 x 10-4
·   Capacitor dissipation factor at 100Hztanδ≤ 1.2 x 10-3 for CR < 450μF
≤ 1.5 x 10-3 for CR  450μF ≤ CR ≤800μF
≤ 2.0 x 10-3 for CR > 800μF
·   Life expectancy (Load duration)tLD(co)100 000 h at Ɵhs +70ºC (For life expectancy as function of voltage and hot Spot temperature refer data sheet)
·   FIT rate(Failure quota)αFQ(co)50 failures per 109 component hours at Ɵhs +70ºC (For FIT rate as function of voltage and hot spot temperature refer individual Data sheet)
  Thermal characteristics
·   Lowest operating temperatureT min.-40ºC
·   Maximum operating temperatureT max.+70ºC
·   Maximum hot spot temperatureT HS+ 85 ºC
·   Storage temperature rangeºC-40 ºC~85 ºC
·   Max. permissible altitudem2000 m above sea level (Higher refer current derating chart on capacitor individual Data Sheet)
·   Cooling
Naturally air-cooled (or forced air cooling)
  Mechanical characteristics
·   Max. torque (mounting bolt)
M12: 12 Nm
·   Max. torque (female terminal) cc
M6: 5 Nm
M8: 6 Nm
M10:8Nm
·   DimensionsDΦ x HRefer table on page 03 to 07


Product Approval


IEC/EN  61071-2007

700Vdc~4000Vdc

20μF~4500μF

Product Application
