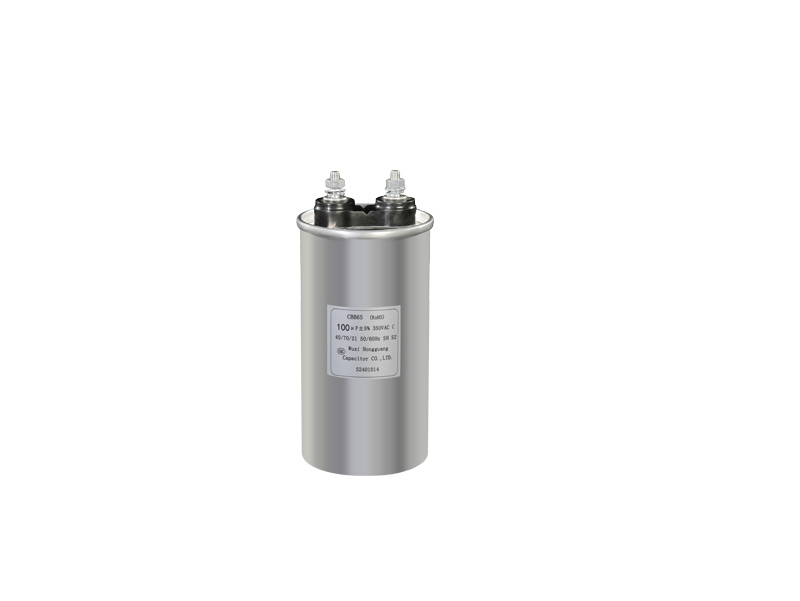

PEC AC-Filter Capacitor

1.High RMS current rating
2.High inrush current capability
3.Over-pressure safety device
4.Self-healing properties
5.Non-PCB, filled with biodegradable oil, Non-PCB
6.Long life expectation

Application

AC filtering capacitor for general use in power electronics applications: UPS Power Supply, input and output filtering of inverters of Solar (PV), Wind Power, Industrial motor drivers, damping, commutation, etc.

Product parameters


  Technical Specifications
·   Rated CapacitanceCnxxxμF
·   Rated tolerance%5% (other tolerance upon request)
·   Rated AC Voltage (rms)VR (rms)Refer Data sheet
·   Rated AC VoltageVR (AC)Refer Data sheet
·   Rated DC VoltageVR (DC)Refer Data sheet
·   Non-recurrent surge voltage

·   Max. RMS CurrentImaxRefer Data sheet
·   Max. peak currentIpRefer Data sheet
·   Max. surge currentIsRefer Data sheet
·   Pulse handling capability

   - Repetitive (dv/dt) maxV/µsIP / CR = Rate of voltage rise
   - Surge (dv/dt)sV/µsIs / CR = Rate of voltage rise
·   OvervoltageVRMS1.1 VRMS max. 30% of on load duration
1.15VRMS max. 39 minutes per day
1.2VRMS max. 5 minutes per day
1.3VRMS max. 1 minutes per day
·   Life expectancy (Load duration)  tLD(co)100 000 h at 70ºC (For life expectancy as function of voltage and hot Spot temperature refer chart on Individual Data sheet).
·   FIT rate (Failure quota)   αFQ(co)100 failures per 109 component hours at Ta= +50ºC and V R(RMS) (For FIT rate as function of voltage and temperature refer chart on Data sheet)
   Routine Test Data
·   Voltage test Terminal to TerminalUTT 2.15 x VRMS, 2s
·   Voltage Test Terminal to CaseUTC 3600Vac, 10s, for VR (RMS) < 600Vac
 6000Vac, 10s, for VR (RMS) ≥ 600Vac
·   Dissipation FactorTanδ ≤1.0 x 10-3 at 100Hz
   Thermal characteristics
·   Climatic category as per IEC 60068-1
40/70/56
·   Lowest operating temperatureT min-40ºC
·   Maximum hot spot temperatureT max.+85ºC
·   Rated temperatureTOP+ 70 ºC
·   Storage conditionsºC
RH(%)
-40 ºC~85 ºC ≤ 85% for max. 30 days during the year, without dew (avr. ≤ 70%) Max. 36 months from the date marked on package label
   - Temperature
   - Relative humidity
   - Storage time
   Mechanical characteristics
·   Max. torque (mounting bolt M12)
Max. 12 Nm
·   Max. torque M10 screw terminals
Max. 7 Nm
·   Mechanical safe device
Overpressure disconnector
·   Max. short circuit current as per UL810AFC10kA
·   Creepage distance
≥ 28 mm
·   Clearance distance
≥ 20mm
·   Degree of protection
IP00
·   Max. altitudem≤2,000m above sea level (1)
·   Mounting position and installation
Refer Data sheet

Product Approval


IEC 61071-2007

Product Application

FAQ

Q:

What is the process for customizing products? How long does it typically take?

A:
The customization process consists of five steps: 1. Requirements communication (clarifying parameters, application scenarios, and batch requirements); 2. Solution design (the technical team develops and confirms the customization solution); 3. Sample making (producing samples and conducting performance testing); 4. Customer verification (customer confirms sample compliance); 5. Mass production. The standard customization cycle is 15-30 days, depending on product complexity and order volume. Urgent requests can be expedited upon negotiation.
Q:

Does your company support customized capacitor services?

A:
Yes. For the specific needs of high-end fields such as new energy and medical devices, we can provide customized R&D and production services, covering personalized adjustments to key parameters such as capacitance, voltage, size, and temperature rating. We can also assist customers in completing sample testing and mass production coordination.
Q:

What are your company's core products? In which fields are they mainly used?

A:
Our core product is metallized polypropylene film capacitors, with a focus on the CBB series. These products are widely used in various fields, including new energy (photovoltaic inverters, energy storage PCS, SVG, new energy vehicles), home appliances (air conditioners, refrigerators, washing machines), power tools (water pumps, cleaning machines), and medical devices (defibrillators), meeting the high reliability requirements of different scenarios.
