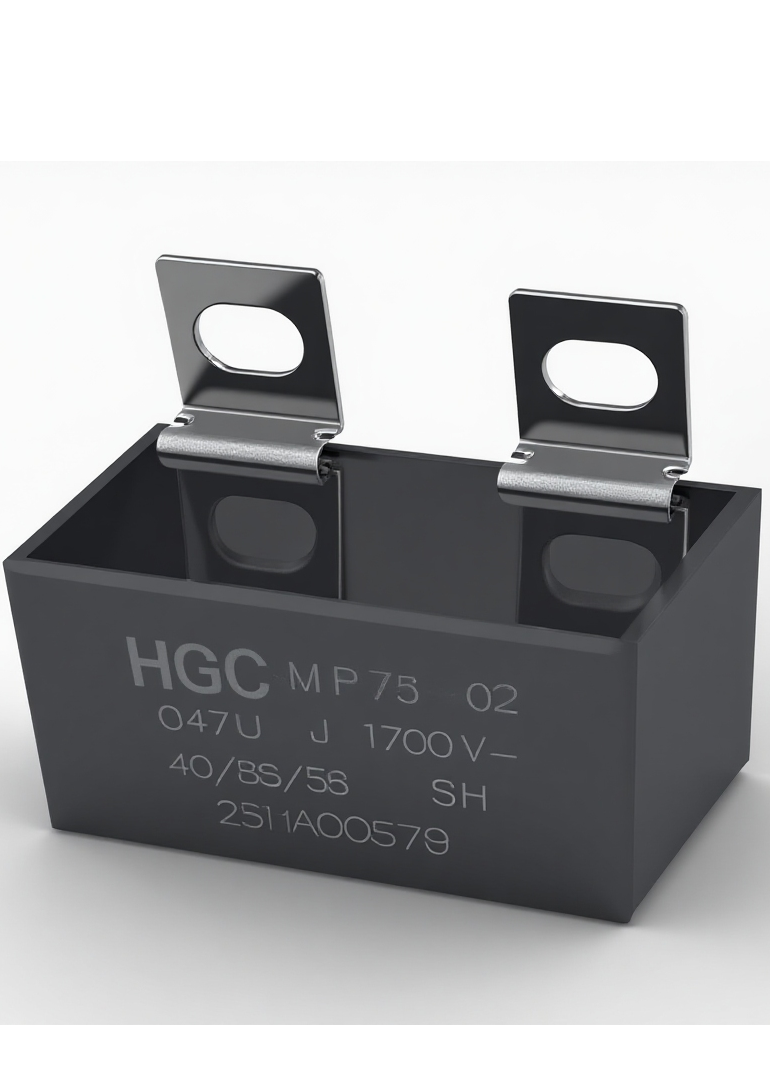

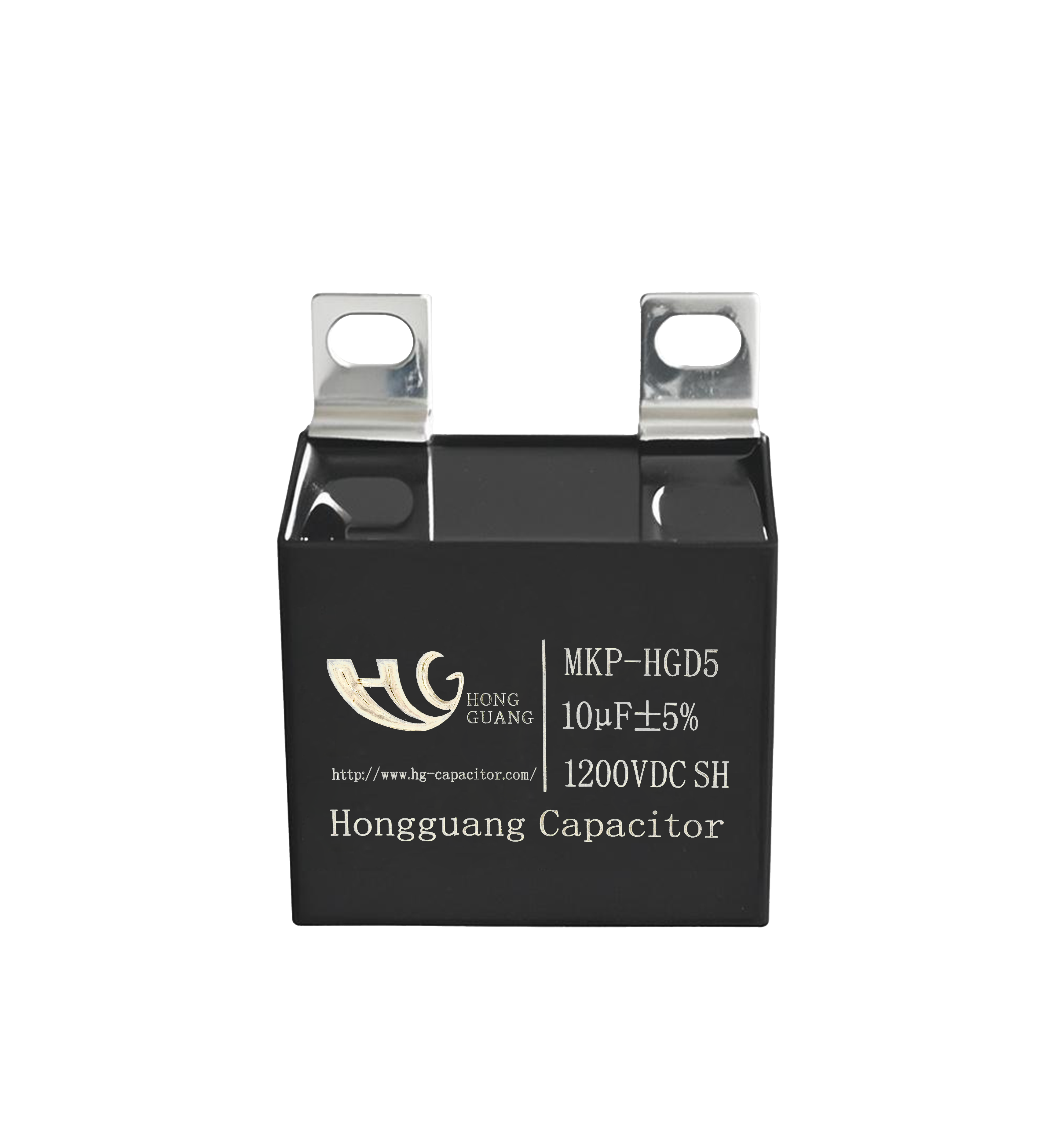

MKP Snubber Capacitor

1.High pulse load capability (dv/dt)
2.Low ESR and ESL
3.High frequencies
4.Self-healing properties
5.Long life expectation

Application

Protection of IGBT of inverters and converters for: AC and DC motor drives systems, UPS, PV (photovoltaic) Solar, wind Power, Power supply, induction heaters, frequency converters, Electrical Welding, etc.

Product parameters

  Reference Standards

IEC /EN 61071, GB /T 17702 and IEC 60384-16

  Technical Specifications
·   CapacitanceCR0.068μF   ~    15μF
·   Tolerance%J = ± 5% and K = ± 10%
·   Rated VoltageURDC (VDC)700850100012501600170020002500
URAC (VAC)420450480500600650700800
   Max. Rated voltageVDC1.1URDC for maximum 30% of on-load duration
1.15 VR for maximum 30 minutes per day
1.2 VR for maximum 5 minutes per day
1.3 VR for maximum 1 minute per day
·   Insulation Resistanceτ = CR.Rins @ 20°C, RH≤65%τ (s)τ (s) > 10.000 s (after 1 minute)
For VR ≥500V measured at 500V
For VR < 500V measured at 100V
·   ESL (Self Inductance)nH< 0.7nH/mm terminal lead space (P)
·   Reliability

   - Service LifetSL200.000h at VR @ THS = 85ºC
   - Failure rate (FIT) (1) λ10 IT at VR @ TAMB = 40ºC

  Thermal characteristics
·   Climatic Category as per IEC 60068-1
40/110/56
·   Max. Operating temperature (Hot spot temperature)T op(max.)+110 ºC
·   Upper category temperatureT max.+105 ºC
·   Lower category temperatureT min.- 40 ºC
·   Storage conditions
   - TemperatureT (ºC)-40 to +80 ºC
   - Maximum relative humidityRH (%)Avr. ≤70% (≤85% for max. 30 days during the year
   - Storage timeYearsMax. 3 years from the date market on package label
