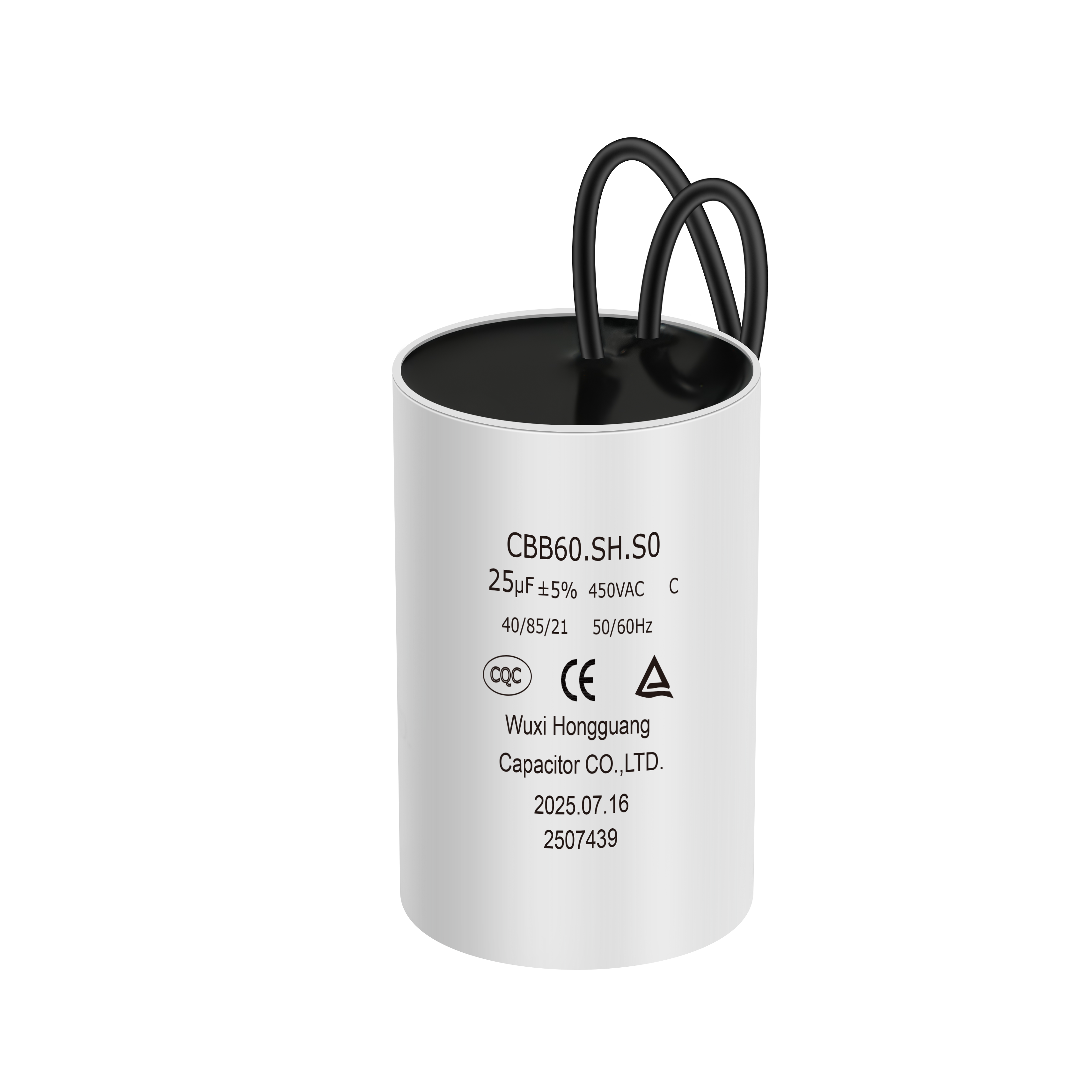

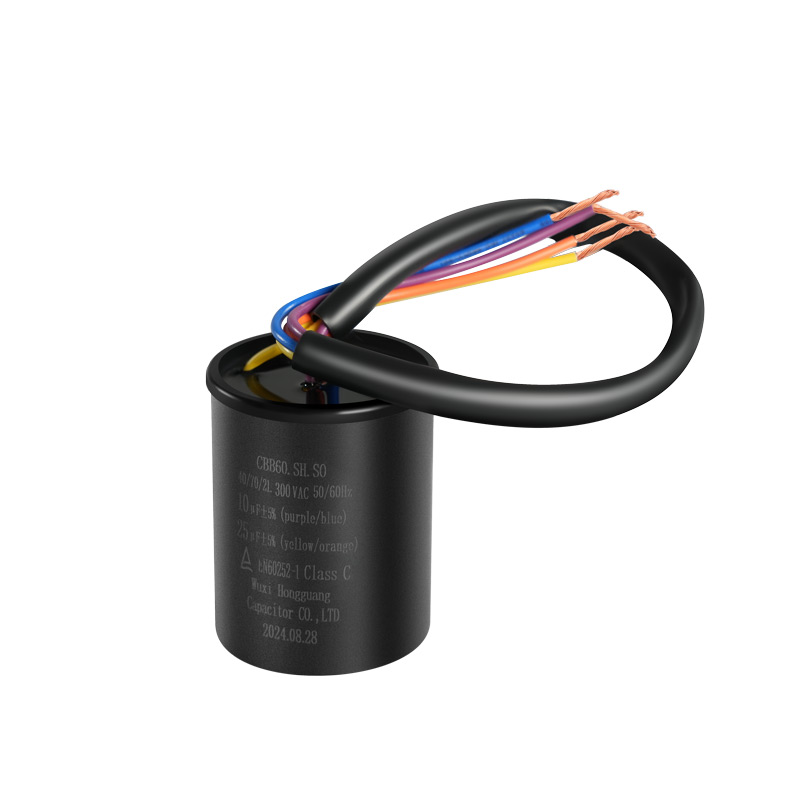

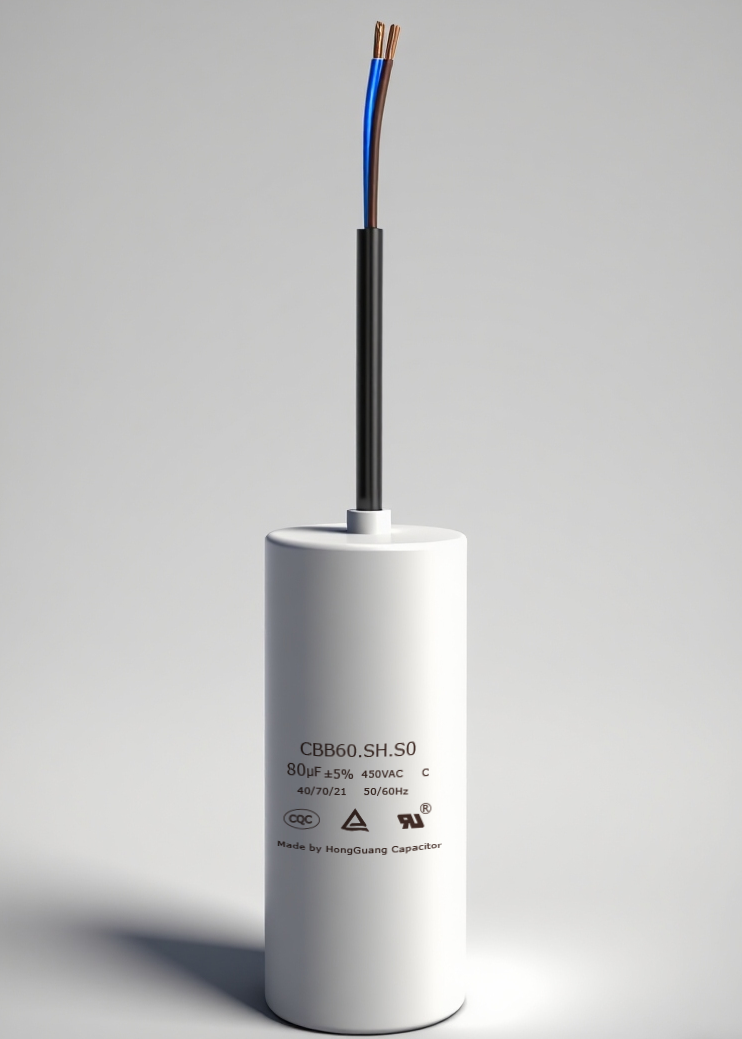

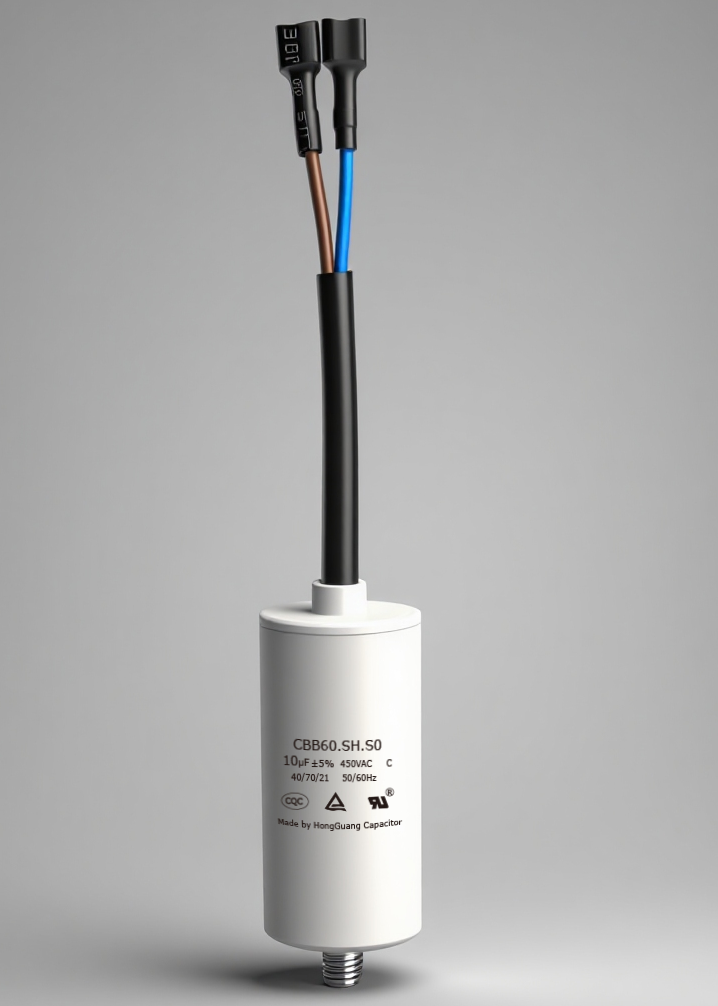

CBB60 Capacitor

1.Self-healing properties
2.Low dissipation factor
3.Segmented safety device S3 、S0 Class as per IEC 60252-1,
4.Insulator materials as per IEC 60335-1
5.Long life expectation

Application

For general AC sine wave applications, mainly as motor run capacitor,Suitable for refrigerator compressor operation,Pump,Motor,Fan and etc.

Product parameters

  Reference Standards

IEC /EN 60252-1, UL 810, GB/T 3667-1, IEC/EN 60335-1

  Technical Specifications
·   CapacitanceCRSingle Capacitance: 2 ~ 20µF
·   Tolerance %J = ± 5%
·   Rated voltage VR Vac250 ~ 450Vac
·   Rated frequency fRHz50/60Hz
·   Maximum VoltageVac (max)1.1VR
·   Maximum currentImax (A)1.3 IR   (IR = rated   current)
·   Max. rate of voltage risedv/dt(max.)10V/ µs
·   Insulation Resistance τ = CR.Rins @ 20°C, RH≤65%τ (s)τ (s) > 10.000 s (after   1 minute)
·   Life expectancy as per IEC 60252-1 tSLClass B = 10.000h
  Routine test   parameters
·   Voltage between terminalsUTT (Vac)2.0VR,   2s
·   Voltage between terminals and caseUTC (Vac)2000Vac, 2s

  Thermal characteristics
·   Climatic Category as per IEC 60068-1
40/85/21
·   Upper category temperatureT max.+85 ºC
·   Lower category temperatureT min.- 40 ºC
·   Damp heat testttest21 days
·   Storage conditions
   - TemperatureT (ºC)-40 to +80 ºC
   - Maximum relative humidityRH (%)Avr. ≤70% (≤85% for max. 30 days during the year, without   condensation
   - Storage timeYearsMax. 3 years from the date market on package label.

Product Approval


EN 60252-1


GB/T 3667.1-2016


UL 810

Product Application

FAQ

Q:

What is the process for customizing products? How long does it typically take?

A:
The customization process consists of five steps: 1. Requirements communication (clarifying parameters, application scenarios, and batch requirements); 2. Solution design (the technical team develops and confirms the customization solution); 3. Sample making (producing samples and conducting performance testing); 4. Customer verification (customer confirms sample compliance); 5. Mass production. The standard customization cycle is 15-30 days, depending on product complexity and order volume. Urgent requests can be expedited upon negotiation.
Q:

Does your company support customized capacitor services?

A:
Yes. For the specific needs of high-end fields such as new energy and medical devices, we can provide customized R&D and production services, covering personalized adjustments to key parameters such as capacitance, voltage, size, and temperature rating. We can also assist customers in completing sample testing and mass production coordination.
Q:

What are your company's core products? In which fields are they mainly used?

A:
Our core product is metallized polypropylene film capacitors, with a focus on the CBB series. These products are widely used in various fields, including new energy (photovoltaic inverters, energy storage PCS, SVG, new energy vehicles), home appliances (air conditioners, refrigerators, washing machines), power tools (water pumps, cleaning machines), and medical devices (defibrillators), meeting the high reliability requirements of different scenarios.
